Sound Assembly Tool : Interactive sound & fire assembly tool

Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.

Assemblies Found: 15

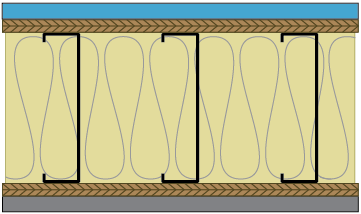

PGD-546-565-16

Sound	STC 45 NOAL 24-06046
Fire	1 hr.

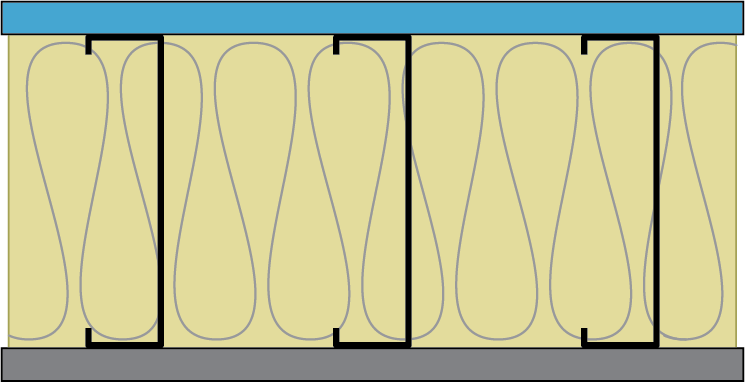

PGD-546-595-16

Sound	STC 47 NOAL 21-0361
Fire	1 hr.

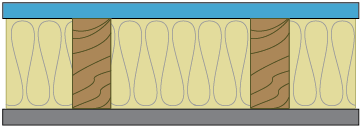

PGD-W-636-24

Sound	STC 48 NOAL 23-10091
Fire	1 hr.

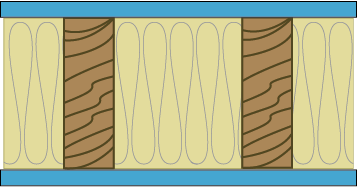

PGD-W6-467-16

Sound	STC 49 NOAL 21-1047
Fire	1 hr.

PGD-33-513-16

Sound	STC 50 NOAL 23-09019
Fire	1 hr.

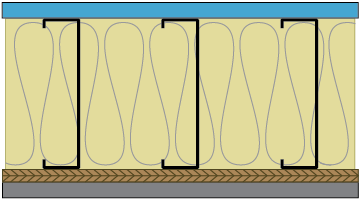

PGD-556-447-16

Sound	STC 50 NOAL 24-0643
Fire	1 hr.

PGD-54-526-16

Sound	STC 51 NOAL 18-0911
Fire	1 hr.

PGD-W6-467-24

Sound	STC 53 NOAL 22-0760
Fire	1 hr.

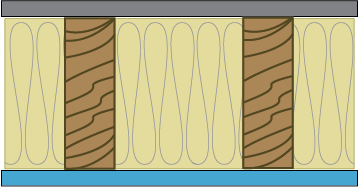

PGD-W6-565-24

Sound	STC 53 NOAL 21-1052
Fire	1 hr.

PGD-18-484-16

Sound	STC 54 NOAL 23-02001
Fire	1 hr.

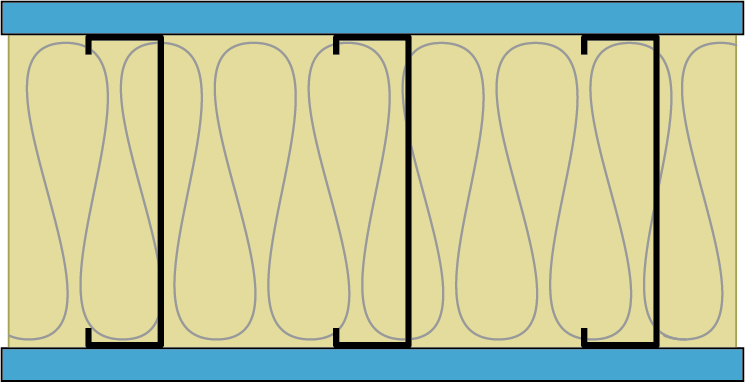

PGD-546-425-16

Sound	STC 54 NOAL 21-0362
Fire	1 hr.

PGD-18-484-24

Sound	STC 55 NRC-TLA-05-050
Fire	1 hr.

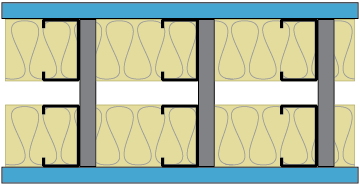

PGD-182D-522B-16

Sound	STC 56 NOAL 22-1024
Fire	Non-Rated

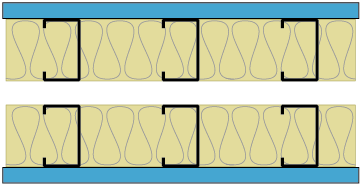

PGD-182D-522-16

Sound	STC 58 NOAL 22-1023
Fire	Non-Rated

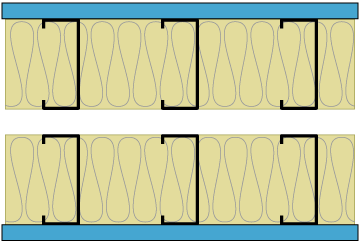

PGD-54D-394-16

Sound	STC 63 NOAL 23-09029
Fire	1 hr.
