Sound Assembly Tool : Interactive sound & fire assembly tool

Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.

Assemblies Found: 103

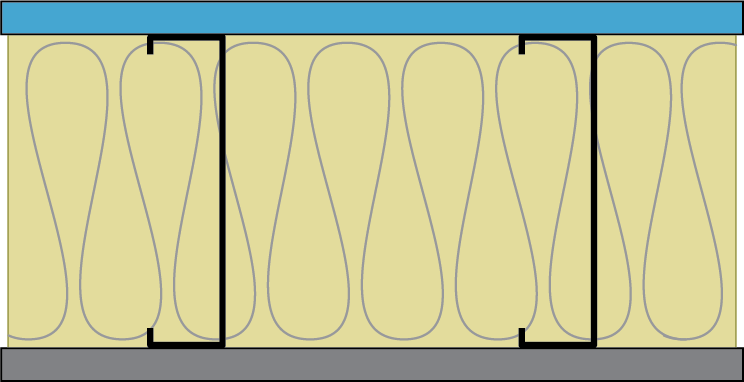

PGD-336-534-24

Sound	STC 52 NOAL 22-0929
Fire	1 hr.

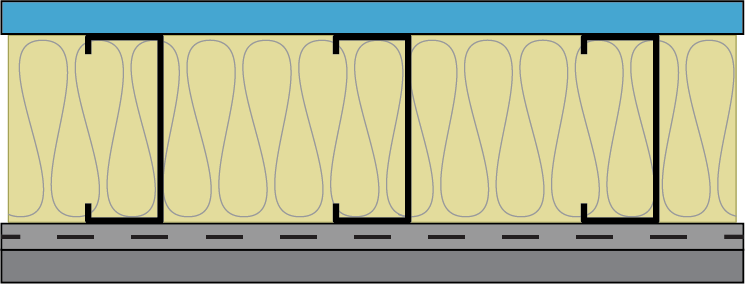

PGD-54-552-16

Sound	STC 52 NOAL 21-0348
Fire	1 hr.

PGD-54-554-24

Sound	STC 52 NOAL 19-0722
Fire	1 hr.

PGD-54-556-24

Sound	STC 52 NOAL 19-1026
Fire	1 hr.

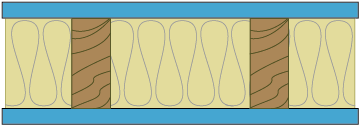

PGD-W-537-24

Sound	STC 52 NOAL 23-10090
Fire	1 hr.

PGD-15-423-16

Sound	STC 53 NOAL 17-0453
Fire	1 hr.

PGD-19-558-24

Sound	STC 53 NOAL 19-0922
Fire	1 hr.

PGD-33-515-24

Sound	STC 53 NOAL 19-0710
Fire	1 hr.

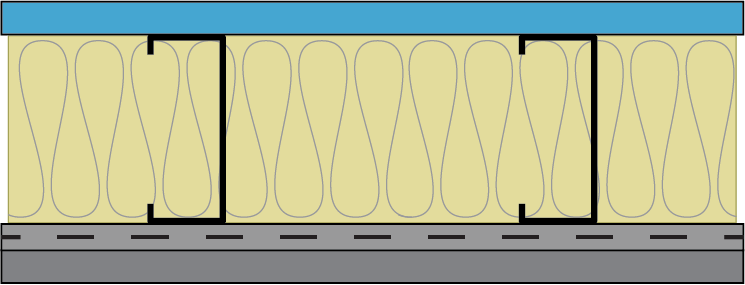

PGD-68-534-24

Sound	STC 53 NOAL 19-0718
Fire	1 hr.

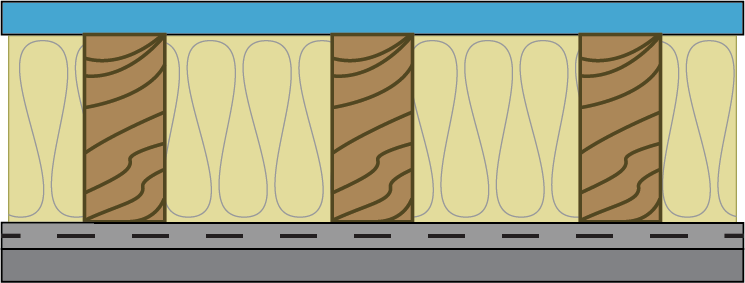

PGD-W-535-16

Sound	STC 53 NOAL 17-0747
Fire	1 hr.

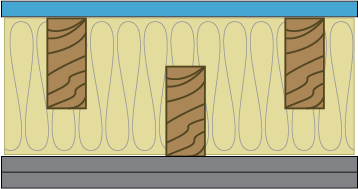

PGD-WS-467-16

Sound	STC 53 NOAL 17-0939
Fire	1 hr.

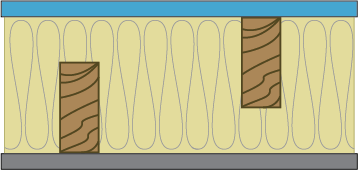

PGD-WS-537-24

Sound	STC 53 NOAL 21-0624
Fire	1 hr.

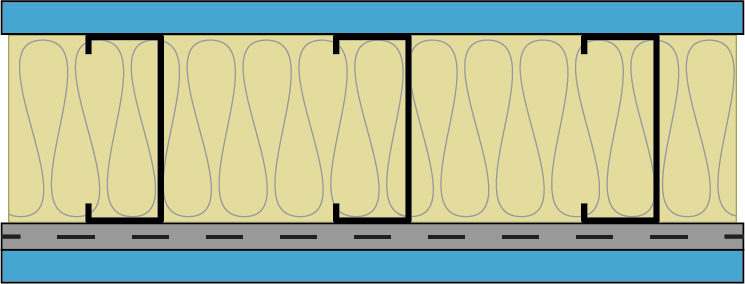

PGD-15-435-16

Sound	STC 54 NOAL 18-0844
Fire	1 hr.

PGD-18-470-24

Sound	STC 54 NOAL 23-03070
Fire	1 hr.

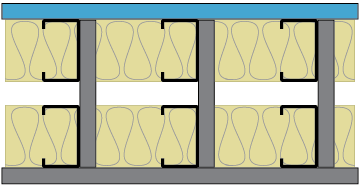

PGD-182D-512B-16

Sound	STC 54 NOAL 22-1025
Fire	1 hr.
