Sound Assembly Tool : Interactive sound & fire assembly tool

Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.

Assemblies Found: 103

PGD-33-573-16

Sound	STC 40 NOAL 22-0907
Fire	1 hr.

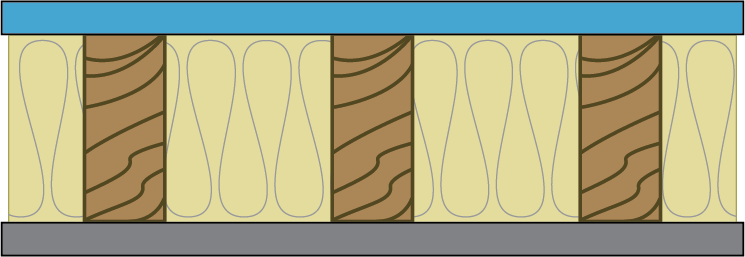

PGD-W-646-16

Sound	STC 41 NOAL 17-0730
Fire	1 hr.

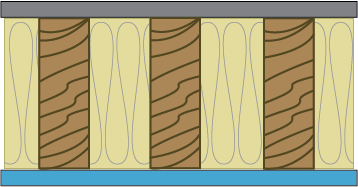

PGD-W6-753-16

Sound	STC 42 NOAL 21-0504
Fire	1 hr.

PGD-686-662-16

Sound	STC 43 NOAL 24-08047
Fire	1 hr.

PGD-97-602-16

Sound	STC 43 NOAL 18-0721
Fire	1 hr.

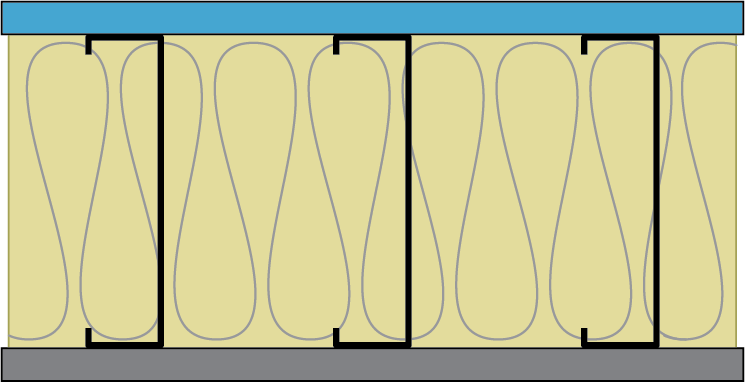

PGD-546-576-16

Sound	STC 44 NOAL 21-0355
Fire	1 hr.

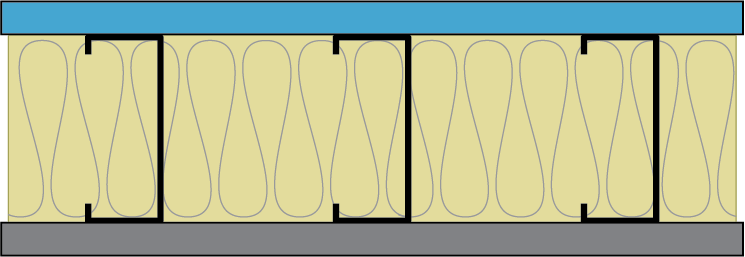

PGD-19-574-16

Sound	STC 45 NOAL 19-0426
Fire	1 hr.

PGD-43-595-16

Sound	STC 45 NOAL 18-0735
Fire	1 hr.

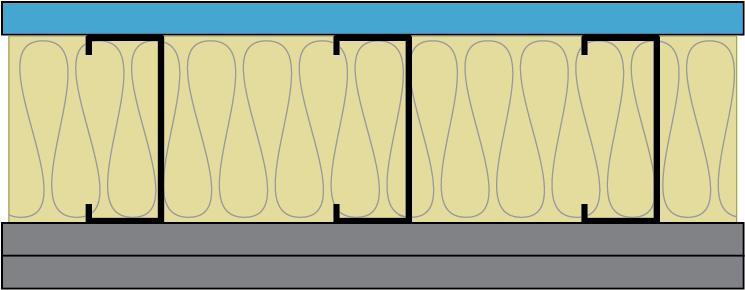

PGD-54-556-16

Sound	STC 45 NOAL 18-0626
Fire	1 hr.

PGD-68-612-16

Sound	STC 45 NOAL 18-0608
Fire	1 hr.

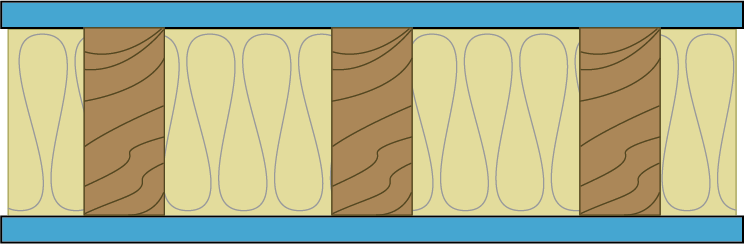

PGD-W-574-16

Sound	STC 45 NOAL 20-0412
Fire	1 hr.

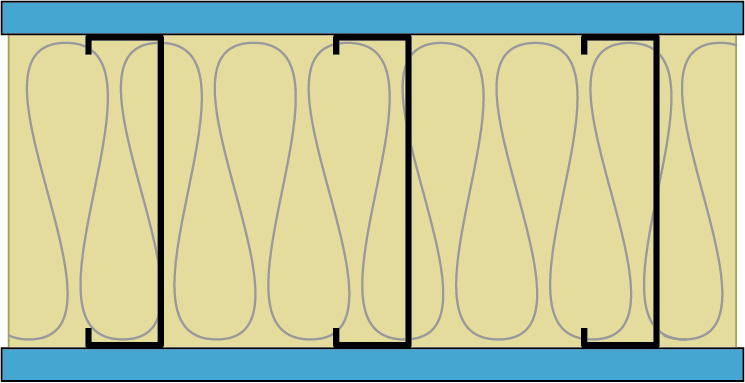

PGD-436-485-16

Sound	STC 46 NOAL 18-1021
Fire	1 hr.

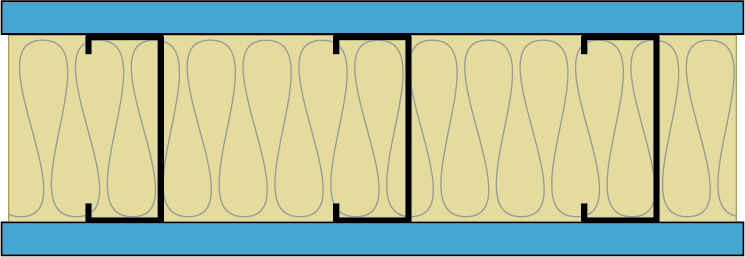

PGD-54-554-16

Sound	STC 46 NOAL 22-0570
Fire	1 hr.

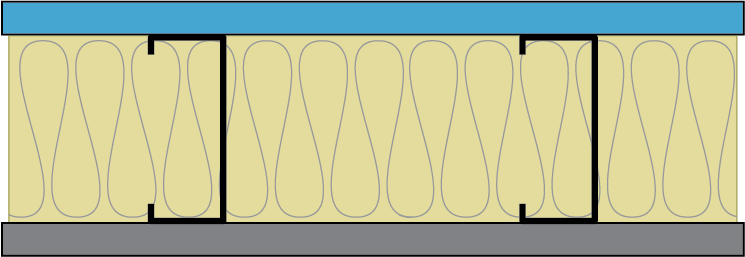

PGD-54-664-24

Sound	STC 46 NOAL 19-0723
Fire	1 hr.

PGD-686-638-16

Sound	STC 47 NOAL 24-08048
Fire	1 hr.
