Sound Assembly Tool : Interactive sound & fire assembly tool

Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.

Assemblies Found: 15

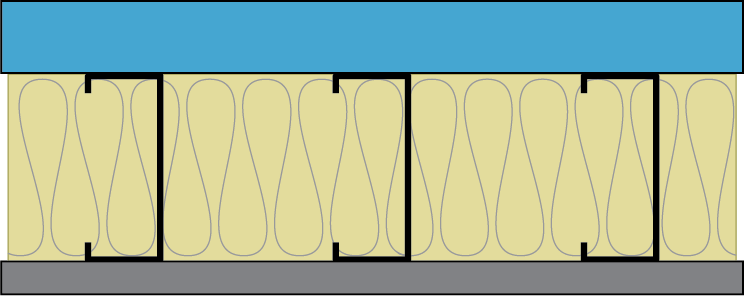

PGD-54-516-16

Sound	STC 52 NOAL 18-0909
Fire	1 hr.

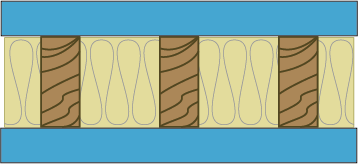

PGD-W-397-16

Sound	STC 55 NOAL 23-09014
Fire	1 hr.

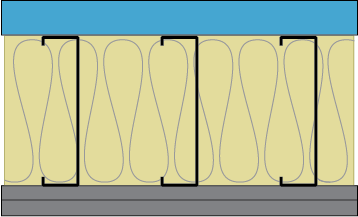

PGD-336-432-16

Sound	STC 58 NOAL 20-1235
Fire	1 hr.

PGD-54-314-16

Sound	STC 59 NOAL 23-09025
Fire	2 hrs.

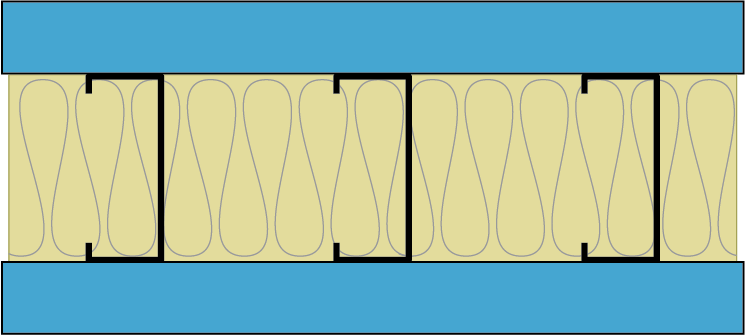

PGD-33-358-16

Sound	STC 62 NOAL 18-0903
Fire	2 hrs.

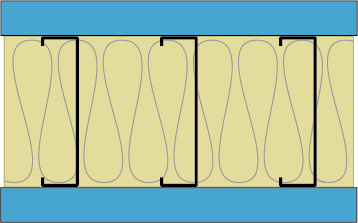

PGD-546-353-16

Sound	STC 62 NOAL 18-1111
Fire	2 hrs.

PGD-54D-286-16

Sound	STC 65 NOAL 18-0917
Fire	Non-Rated

PGD-18D-428-16

Sound	STC 66 NOAL 22-1207
Fire	Non-Rated

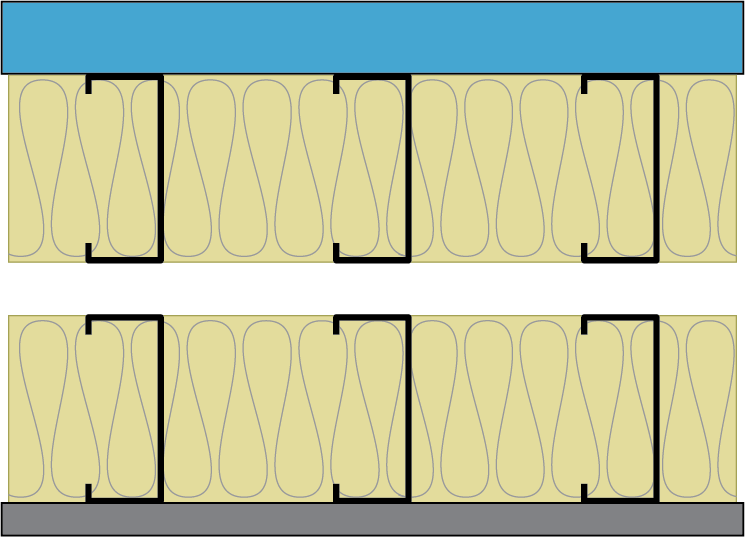

PGD-33D-265-16

Sound	STC 66 NOAL 20-0742
Fire	Non-Rated

PGD-33D-155-16

Sound	STC 72 NOAL 20-0754
Fire	Non-Rated

PGD-18D-355-16

Sound	STC 74 NOAL 22-1206
Fire	Non-Rated

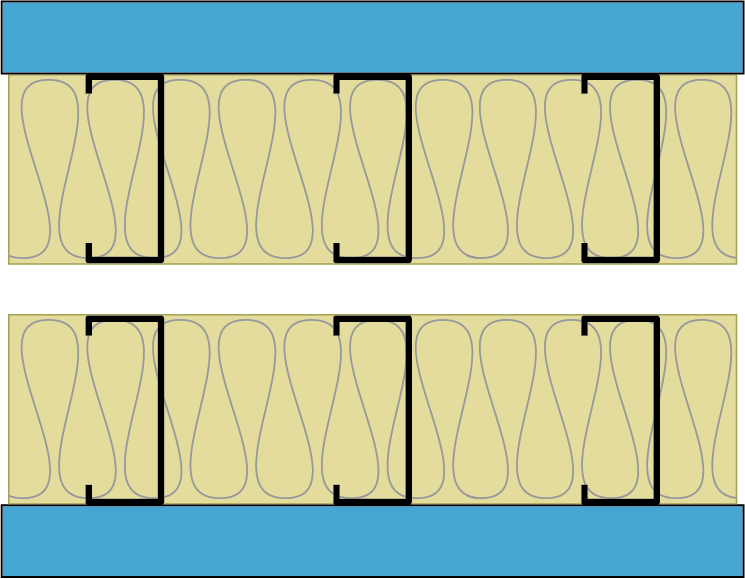

PGD-54D-172-16

Sound	STC 75 NOAL 23-09028
Fire	Non-Rated

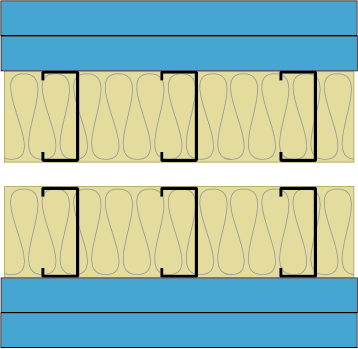

PGD-33D-145-16

Sound	STC 80 NOAL 20-0753
Fire	Non-Rated

PGD-54D-147-16

Sound	STC 80 NOAL 21-1218
Fire	Non-Rated

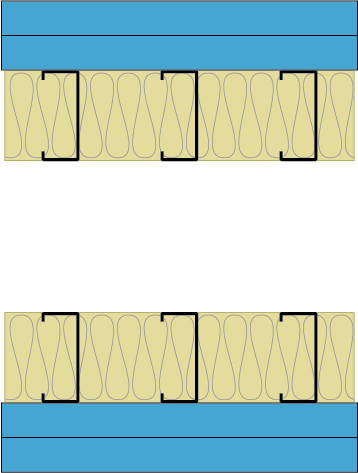

PGD-54D-105-16

Sound	STC 83 NOAL 21-1214
Fire	Non-Rated
