QuietRF® Shielding Tape

Key Benefits

  • Tin-plated copper shielding tape designed to reduce transmission of Radio Frequency in RF mitigating enclosures

  • Conductive through the aggressive pressure sensitive acrylic adhesive

  • Meets flame retardant requirements of UL510

  • Allows for fully grounded metal to metal connected joints between QuietRock 530 RF panels

  • Used with QuietSeam RF on field-modified QuietRock 530RF panels

  • Available in 2 widths: 3/4" for joints and 1-3/4" for field modified panels

Product Description : Conductive tape for metal to metal connectivity

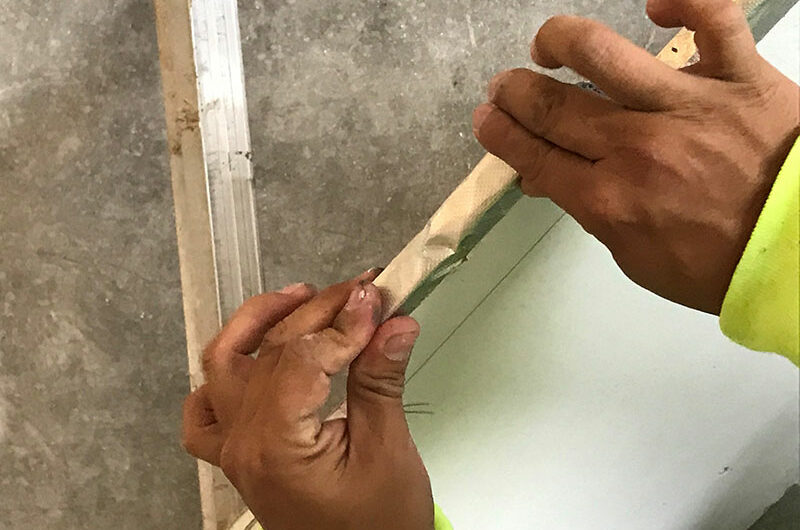

QuietRF® Shielding Tape is an electrically conductive tape used to maintain metal to metal connectivity at the joints and when QuietRock® 530RF panels are cut to size in the field.  It is used before joint compound to join the metal edge tape on the QuietRock® 530RF panels. QuietRF Tape is oxidation resistant, static charge draining, and grounding. The shielding tape is part of the QuietRF system used in high security environments such as SCIF rooms and data centers for both radio frequency and sound transmission mitigation. It is available in two widths: 3/4″ for joints and 1-3/4″ for field modified panels.

Product Dimensions

Unit Size Application Thickness Coverage Weight
¾" Roll ¾" 54 linear feet/roll .2
1-¾" Roll 1-¾" 54 linear feet/roll .3

Technical Data

Installation QuietRF® Installations Instructions
Electrical Resistance

Mil-STD-202 Method 303


0.005Ω/in maximum
Shielding Effectiveness

ASTM D4935


66dB average, 300 kHz to 2.5GHz
Flame Retardancy

UL 510A, Product Category OARC2, File E17385


Passed


Breaking Strength

ASTM D3759


14 lbs/in minimum
Adhesion Strength

ASTM D3330


30.2 oz/in minimum


Temp Range -40°F to +266°F
