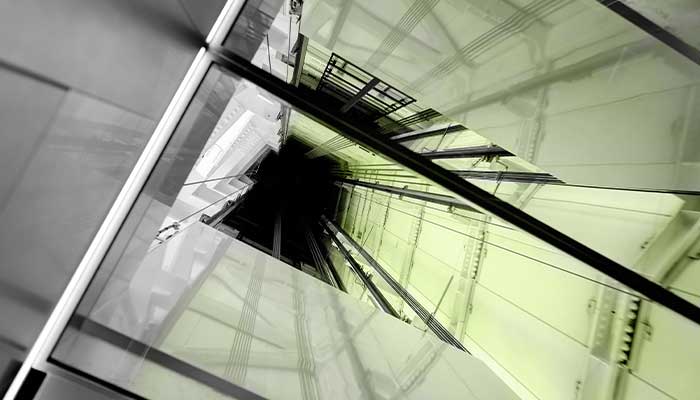

Type X shaftliner designed for lining elevators, ventilation, utility/cavity shafts, and area separation walls in multifamily dwellings
Key component in PABCO Stairwell and Area Separation Fire Wall (ASFW) Systems using C-H, C-T Studs or H-Studs
Achieves fire-resistance ratings of one and two hours
Core is encased in 100% recycled, water-resistant paper facing
PABCORE SHAFTLINER Type X panels are manufactured with a proprietary fire-resistant Type X core which has been reinforced with glass fibers and specialty additives to increase its fire resistance. The core is encased in 100% recycled moisture resistant face and back paper and features a double beveled edge for ease of installation. PABCORE Shaftliner also provides superb protection from the elements.
| TYPE | UL CORE | THICKNESS | WIDTH | LENGTH | EDGE | WEIGHT |
|---|---|---|---|---|---|---|
| PABCORE® Shaftliner Type X | PG-10 | 1" | 24" | 8', 12' | Double Beveled | 4.0 lbs/ft2 |
1Length availability may change; other lengths may be available on a special-order basis. Consult with your local PABCO® representative.
2Represents approximate weight for design and shipping purposes. A more exact weight may be available for your area; consult with your local PABCO® representative.
| Composition | Core: Naturally occurring gypsum and proprietary additives Paper: 100% recycled paper on front, back and long edges |
|---|---|
| Manufactured | ASTM C1396 |
| Installation | GA-216 Application and Finishing of Gypsum Panel Products GA-214 - Levels of Finish for Gypsum Panel Products ASTM C840 Standard Specification for Application and Finishing of Gypsum Board |
| Water Absorption | ASTM C473 ≤10% by weight |
| Surface Burn | ASTM E84 Flame Spread 15 Smoke Developed 0 |
| Combustibility | ASTM E136 Non-Combustible Gypsum Core |
| Fire Resistance and Sound Control | The PABCO® Sound Design Guide Sound Design Tool GA-600 Fire Resistance and Sound Control Design Manual Underwriters Laboratories - UL Product iQ® for the latest UL Design Numbers |
